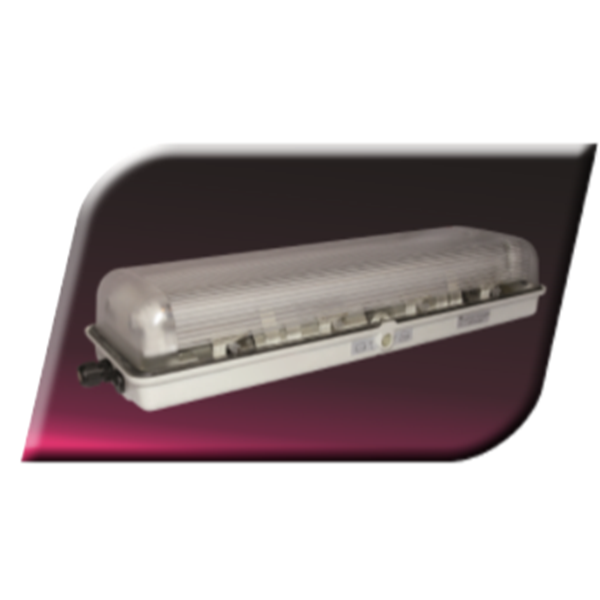

Detail FLUORESCENT LINEAR LFE/LFEE

LFE / LFEE-P series fluorescent light fittings are normally used in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present.

The LFE / LFEE-P range of Zone 1 Lighting has been designed to meet the main requirements of illumination of working areas and to grant a safely evacuation of the plant in case of black-outs.

The materials used to manufacture the LFE - LFEE P series have been studied to grant the maximum protection against the highly corrosive agents present in these industries:

the body in glass fiber reinforced polyester (GRP), provides a very high mechanical strength together with a good resistance against the UV ray effects;

the transparent diffuser in UV ray resistance polycarbonate has a self-extinguishing property according to Standard UL 94;

the gasket on cover grants an IP66 protection level ;

the closing system in one single spot, apart from facilitating greatly the maintenance operations, is itself a guarantee of first-rate holding system since it provides a constant pressure of seals over all the perimeter of the diffuser ;

the internal electrical components are fully sealed to prevent any corrosive action that could cause electrical faults;

the body has two cable entries M25x1.5 on one side and one cable entry M25x1.5 on the opposite side so to allow any loop-in loop-out installation. On request it’s possible to have two cable entries M25x1.5 on both sides;

all the light fittings are equipped, as standard, with one cable gland and two stopping plugs in polyamide, Atex certified. Other materials or combinations are available as option;

two kinds of lampholder: G13 for traditional T8 fluorescent tubes and G5 for new generation of T5 fluorescent tubes;

electronic ballast, equipped with some self-protective functions, works with a multirange voltage and has a two-supply circuit design so to continue to energize one fluorescent tube in case the second one is faulty;

internal circuit is protected by fuses so to minimize any possible problems caused by over-voltage during normal operation;
