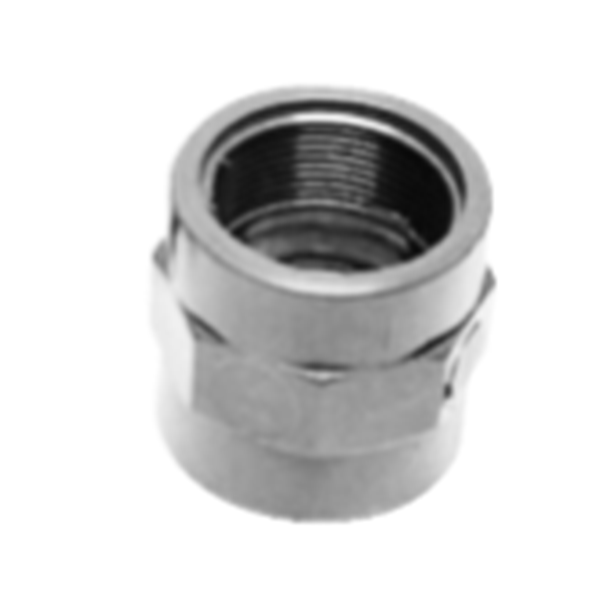

Detail FEMALE-FEMALE COUPLINGS & ADAPTORS RAM

The plugs are normally installed on Ex d and Ex e enclosures to protect the internal equipment by the penetration of liquids and dust before the installation of the conduit fittings and cable glands. They also allow the presence of spare hubs on the enclosure to be used in case of future expansions. The adaptors are used to resolve all the problems connected to the conduit installation as joints and direct connections of equipment with different sizes of threads and/or different types of thread. The adaptors and plugs with cylindrical threads are equipped with O-ring to grant an IP 66/68 protection to the enclosure.

Contruction

The materials used to manufacture the adaptors and plugs have been studied to grant the maximum protection against the highly corrosive agents present in these industries.

They are available in:

• brass

• nickel-plated brass

• galvanized steel

• stainless steel AISI 316

The O-ring are made of neoprene and, for low and high temperature environments, of silicone.

The design of all the adaptors and plugs includes the presence of a hexagon shape to facilitate the installation and to grant the correct tightening level.

All the equipment have the double marking for Ex d and Ex e installations with the sole exception of the components threaded with PG – DIN 40430 that are available only for Ex e installations.

Protection

Scertificate number: IMQ 12 ATEX 007U TC RU C-IT.AA87.B.00509

marking: ` II 2GD Ex d IIC Gb - Ex e IIC Gb - Ex tb IIIC Db

ambient temperature: -40°C +80°C

degree of protection: IP66 / IP68

conformity: Directive ATEX 2014/34/EU TP TC 012/2011

standards: IEC-EN60079-0 IEC-EN60079-1 IEC-EN60079-7 IEC-EN60079-31 ГОСТ 31610.0 ГОСТ IEC 60079-1 ГОСТ Р МЭК 60079-7 ГОСТ Р МЭК 60079-31

category: suitable for Zone 1 - 21 (gas) and Zone 2 - 22 (dust)
