Detail CSE P Series Junction Boxes
CSE P series junction boxes
The CSE - P enclosures are normally used in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present.
The CSE - P enclosures range has been designed to meet the main requirements of power distribution, monitoring and signalling, and other electrical functions inside the hazardous area of the plant
Function
The CSE - P enclosures are normally used form the following main applications:
- control stations
- emergency call units
- instrument housings
- circuit breakers
- switches and changeover switches
- lighting controls - terminal boxes
- electrical housing
- battery container
The CSE P A enclosures are available in different sizes so to create a large and modular range with different heights.
The CSE - P enclosures, jointed together through dedicated flanges, can become a large panel, maintaining the original IP protection. Starting height 90 mm. the CSE - P series can be equipped with operators (pilot lights, push buttons, switches, ect.) on cover.
Construction
The materials used to manufacture the CSE - P series have been studied to grant the maximum protection against the highly corrosive agents present in these industries:
- body and cover in glass-reinforced polyester (GRP) black coloured to provide the maximum UV protection and loaded with carbon, to eliminate the risk of ignition sources through static induced sparking resistivity.
- antiloosening screws on cover in stainless steel AISI 316
- gasket on cover in silicone
- internal fixing screws in stainless steel
Accessories
To CSE - P enclosures can be completed with the following accessories:
- internal earth continuity plate in galvanized steel, copper or brass
- internal mounting plate in galvanized steel or stainless steel
- mounting brackets in stainless steel
- internal and external earth screws in stainless steel AISI 316
- external hinges in thermoplastic material
Protection certiļ¬cate number: IMQ 13 ATEX 000
marking:
` II 2GD Ex e ia IIC T6 Gb Ex tb IIIC T85°C Db (terminal boxes)

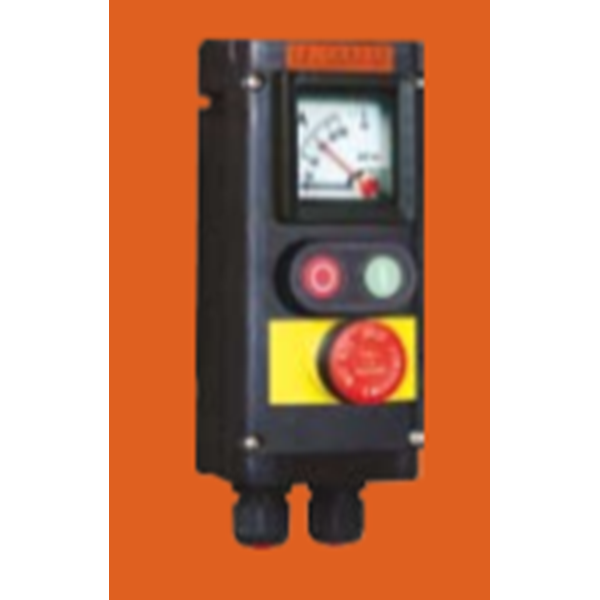

` II 2GD Ex d e mb IIC T6 Gb Ex tb IIIC T85°C Db (control stations)
ambient temperature: -40°C +60°C
degree of protection: IP66
conformity: Directive ATEX 94/9/EC
standards: EN60079-0 / EN60079-1 / EN60079-7 / EN60079-11 / EN 60079-18 / EN60079-31
category: suitable for Zone 1 – 21 (gas) and Zone 2 – 22 (dust)
